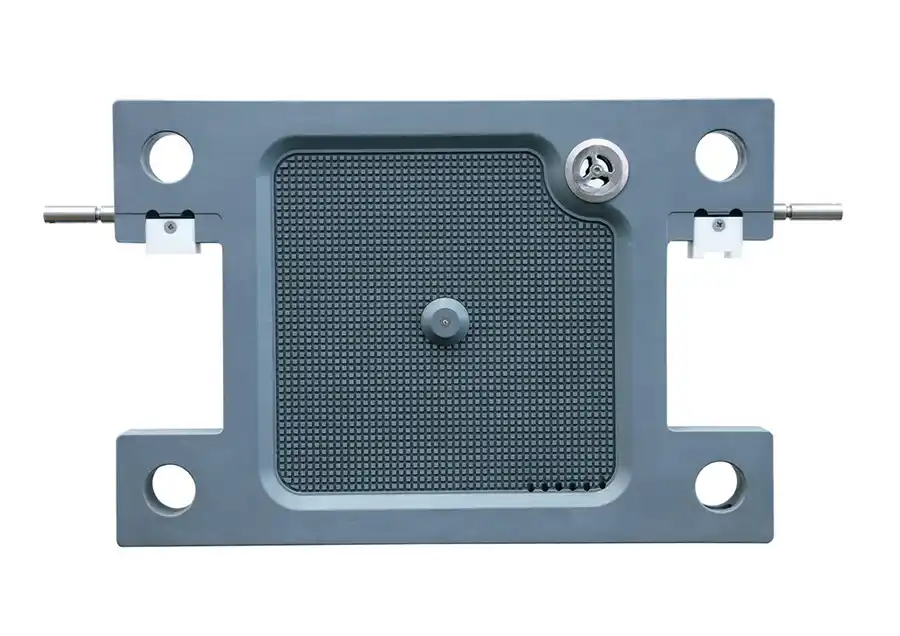

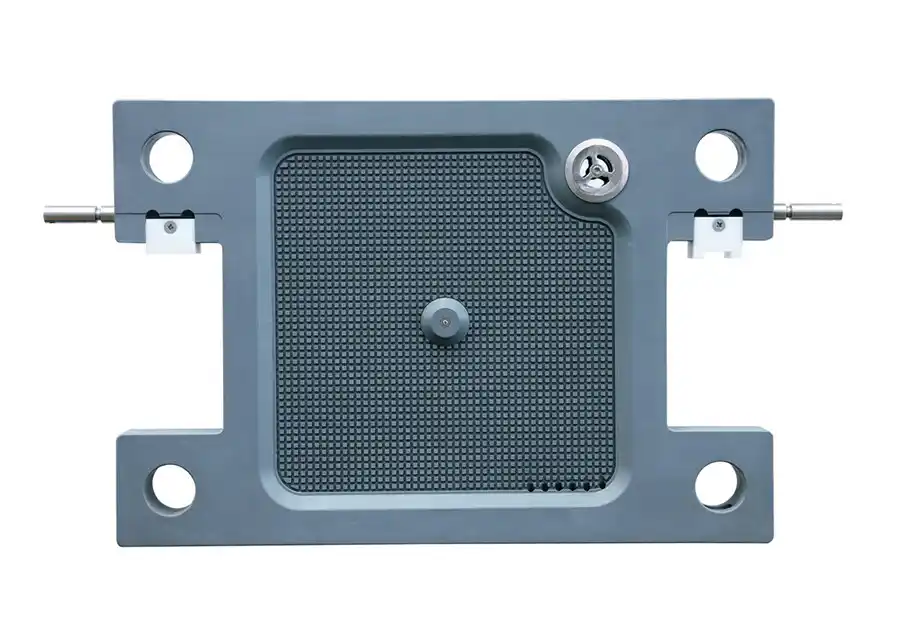

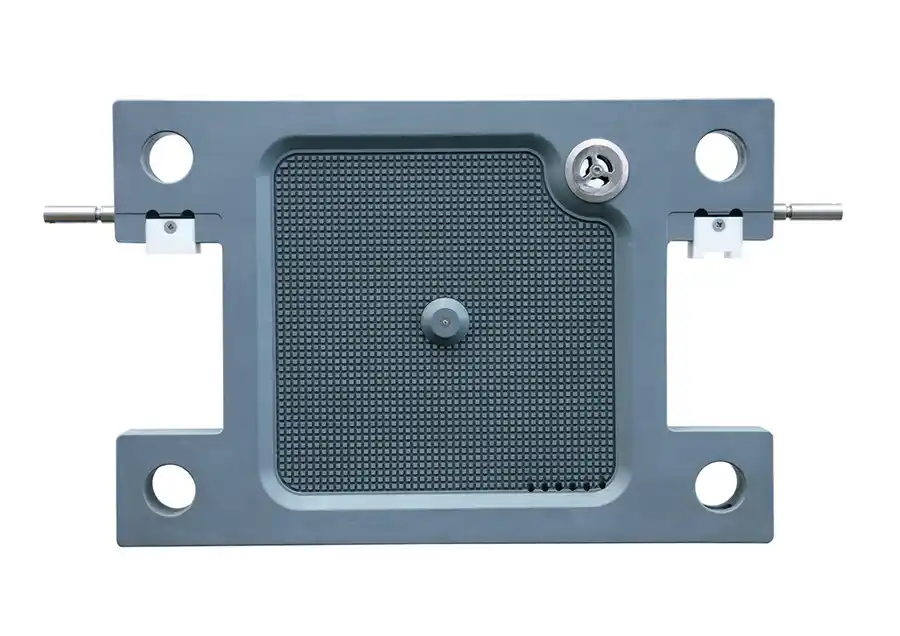

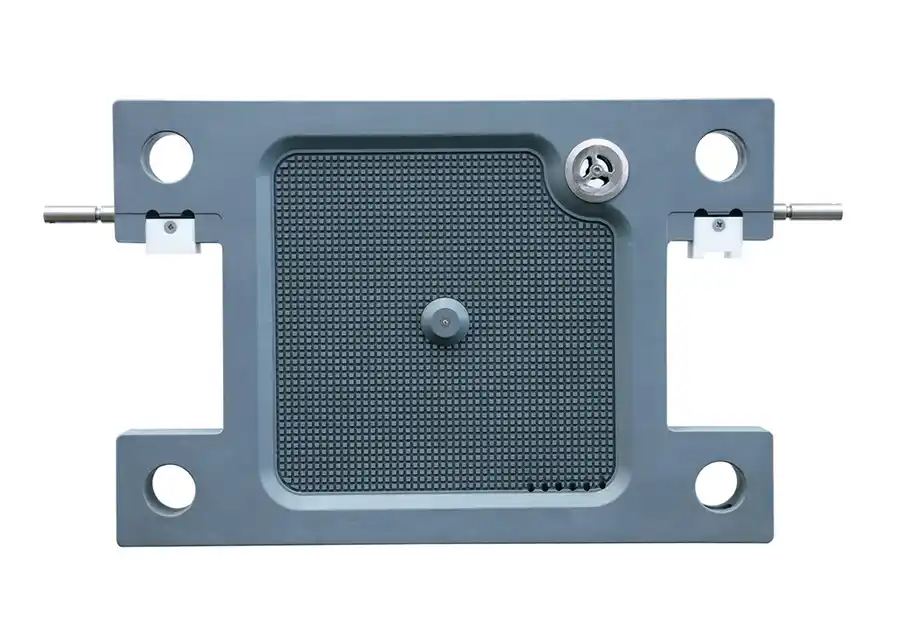

Single Chamber Shunt Washing Filter Plate
| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | JINGJIN |
| Warranty: | 12 months |
Supply Ability
Supply Capacity: 500 Pieces per Week
Packaging & Delivery
- Packaging Details: Wrapped in plastic film and supported by pallets
- Port: Tianjin
- Lead Time: Dependent on order quantity
What is a Single Chamber Shunt Washing Filter Plate
Single chamber split wash filter plates feature a single chamber design that allows for easy cake washing via a split or bypass mechanism. This design allows for more efficient and uniform cake washing, improving the overall filtration process. The filter plate has a single chamber where the filtration and washing process takes place. This simplifies the construction and operation compared to multi-chamber designs. The split or bypass mechanism distributes the washing liquid evenly over the filter cake. This ensures thorough cleaning and removal of impurities from the filter cake. It is typically made from high-quality materials such as polypropylene (PP), TPE elastomers, fiberglass, and other durable materials.
These materials offer excellent chemical resistance, mechanical strength, and service life. The design improves the efficiency of the washing process, reduces the amount of washing liquid required, and shortens the washing cycle. By ensuring uniform washing, the filter plates improve the quality of the filtered product, resulting in lower residual moisture in the filter cake and higher purity of the filtrate.
The slurry (a mixture of solids and liquid) is fed into the filter chamber. The liquid passes through the filter cloth, leaving behind solid particles to form a filter cake. After the filtration phase is complete, the washing liquid is introduced via a split mechanism. The liquid flows over the filter cake, washing away impurities and ensuring uniform distribution. After washing, the filter cake is discharged from the filter plate. The design ensures that the filter cake is easy to remove, minimizing downtime and maintenance.
Company Information
Founded in 1998, Jingjin Environmental Protection Inc. is a comprehensive environmental protection service provider specializing in the production of filtration equipment, offering complete filtration technology solutions and undertaking environmental protection projects. As the vice-president unit of the China Environmental Protection Industry Association, Jingjin is also the primary drafter of national standards for filter presses and filter plates. For twelve consecutive years, Jingjin has maintained the largest production capacity and sales volume of filter presses worldwide, with products sold in 123 countries and regions. The Jingjin trademark has been recognized as a “Famous Chinese Trademark” by the State Administration for Industry and Commerce of China and is protected by the Madrid International Trademark Registration. Water Jiang, the chairman of Jingjin, has been honored as a National Labor Model and National Model Worker.
Jingjin is dedicated to the development of energy conservation and environmental protection, providing consumers with cost-effective products and professional quality services. To meet higher filtration requirements, Jingjin has introduced a complete set of German filter cloth production lines and technology. Leveraging 27 years of filtration experience, Jingjin uses heavy German rapier looms to weave the thinnest silk threads into high-density filter cloth with various hole patterns. This is achieved using a beating-up force of 0.3-3.5 tons after each weft crosses the warp. As a result, Jingjin filter cloth has 50% more filtration holes per unit area compared to other filter cloths, significantly improving filtration speed. The filter cloth is woven under constant temperature and humidity conditions, eliminating fabric burrs caused by static electricity.
Most importantly, the monofilament filter cloth allows filter cakes to fall off automatically, solving a long-standing issue in the industry.
In its pursuit of the China Dream, Jingjin aims to become the most influential comprehensive service provider in the global environmental protection sector. With its mission of “Protecting the Environment and Beautifying China” and its green strategy of “Turning Sewage into Pure Water and Sludge into Resources,” Jingjin provides profound solutions for ecological and economic development, ensuring clean water and blue skies for future generations.
Additional Information
- Research and Development: Jingjin invests heavily in R&D to continuously improve its filtration technologies and develop innovative solutions for environmental protection.
- Global Reach: With a strong international presence, Jingjin collaborates with global partners to address environmental challenges and promote sustainable development.
- Customer Support: Jingjin offers comprehensive customer support, including installation, maintenance, and technical assistance, ensuring optimal performance and longevity of its products.
- Sustainability Commitment: Jingjin is committed to sustainable practices, focusing on reducing waste, conserving resources, and minimizing its environmental footprint.
PP Filter Plate
Our filter plates are crafted from high-quality polypropylene (PP) material using precision press molding techniques. The filtration surface is designed with specialized channels that ensure smooth operation without any blockages.
The composition of JINGJIN plates includes TPE elastomer, fiberglass, and polypropylene, which endows them with exceptional flexibility, toughness, and rigidity. Processed through CNC machining centers, the flatness of the filter plates is maintained below 25µm, ensuring excellent sealing during pressing and preventing any leakage during feeding.
Our plates meet not only the China JB/T4333.3-2005 standard but also the Germany DIN7129 standard, making them fully compatible with European and American products.
Advantages Over National Standard Plates
- Filtration Speed: Improved by 20%
- Density and Intensity: Enhanced
- Anti-Fatigue and Anti-Aging: Improved by 100%
Recessed Plate
- Versatility: Jingjin has developed various filtration plates in different specifications and shapes.
- Material Options: Cast iron, steel Q235, cast steel, stainless steel, cast copper, aluminum alloy, PP, TPE elastomer, EPDM, NBR, and more.
- Max Feeding Pressure: 3 Mpa.
- Features: High temperature and high pressure resistance, excellent sealing and cake washing, anti-corrosion properties, short filtration periods, and lower cake moisture.
Membrane Plate
- Superior Filtration: Membrane plates deliver exceptional filtration effects and unparalleled benefits.
- Controlled Solid Content: Achieved through adjustable squeezing pressure.
- Enhanced Solid Content: Squeezing twice after filtration completion improves the solid content of the cake.
- Efficient Operation: Membrane plates can perform “low pressure for filtration, higher pressure for squeezing,” extending lifespan and reducing energy consumption.
- Improved Washing: Enhanced washing effect, reduced washing time, saved washing liquid, and improved product quality.
Additional Information
- Customization: We offer customized solutions to meet specific filtration needs, ensuring optimal performance for various applications.
- Durability: Our filter plates are designed to withstand harsh operating conditions, providing long-lasting and reliable service.
- Eco-Friendly: Jingjin is committed to sustainable practices, using eco-friendly materials and processes to minimize environmental impact.
- Global Standards: Our products comply with international standards, ensuring compatibility and reliability in global markets.
If you are interested in our products, please contact us !
